Data sheet
| Weight of base machine (T) | 25-45 |
| Oil flow (L/min) | 190-230 |
| Frequency (Hz) | 45 |
| Pressure (bar) | 250 |
| Static momentum (kg c/m sq) | 8 |
| Strength (kH) | 639 |
| Amplitude (mm) | 12 |
| Weight with shackle (kg) | 1400 |
| Dynamic weight (kg) | 750 |
| Transport dimensions (mm) | 1090x1400x700 |
| Shackle strength (T) | 53 |
| Insert/retrieval force (kg) | 15500 |
| Type | Classic, bottom grip |
| Side shackle | No |
More info

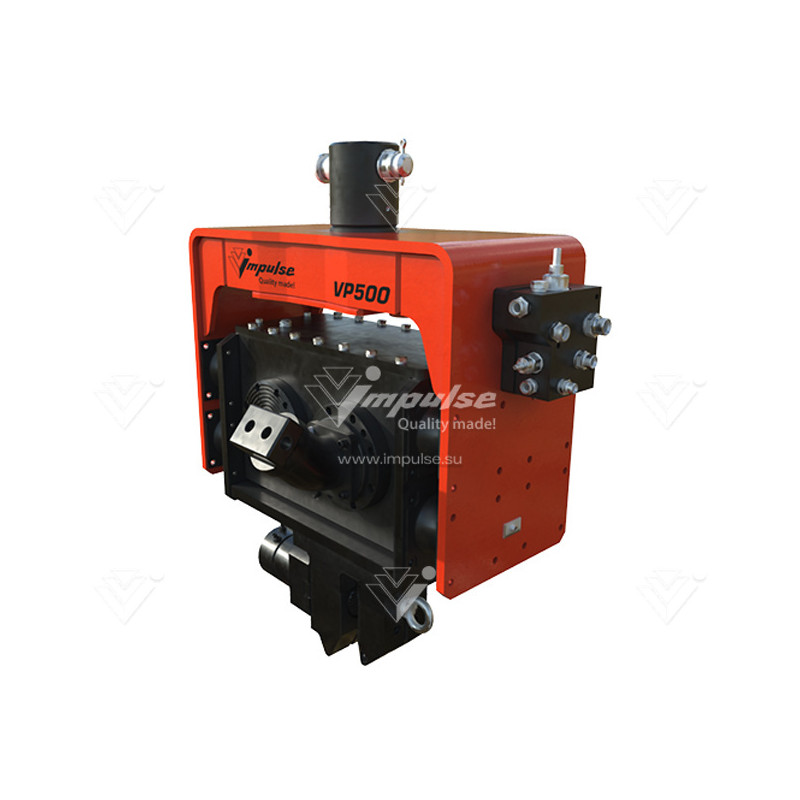

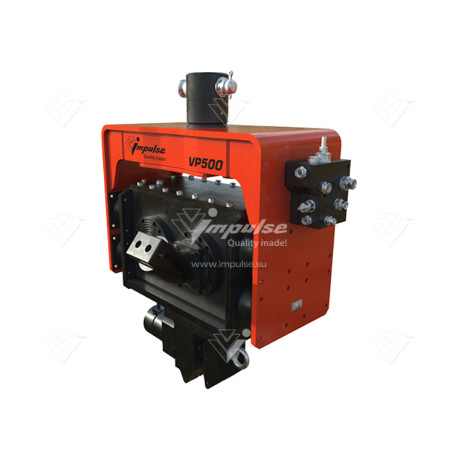

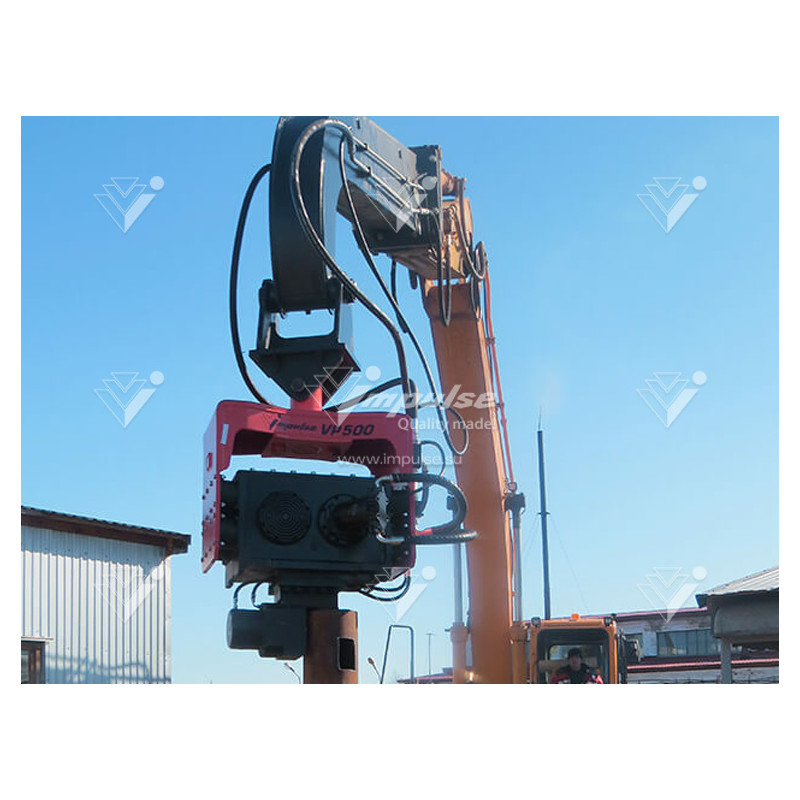

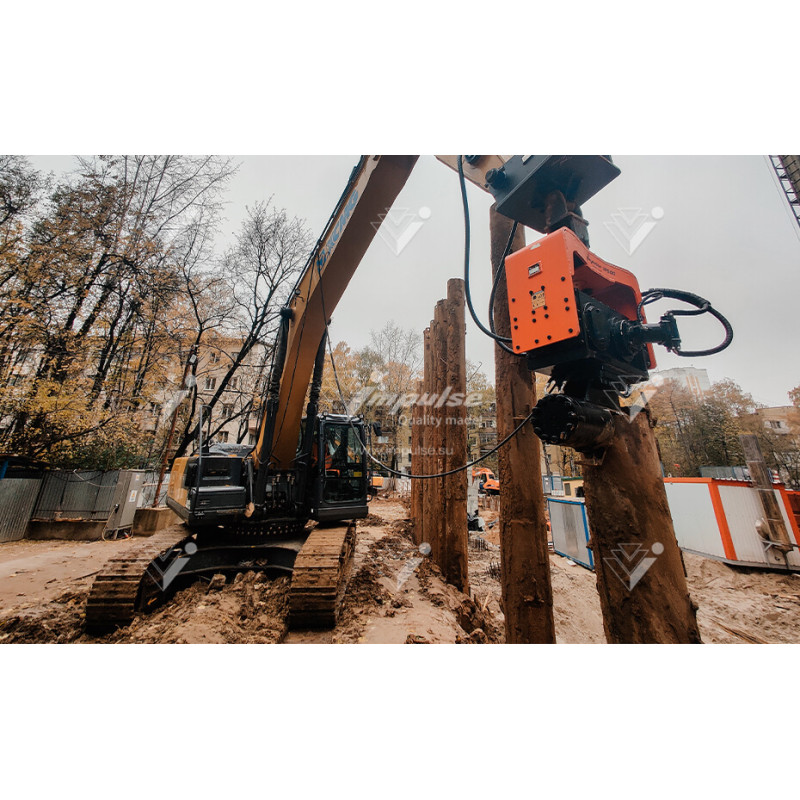

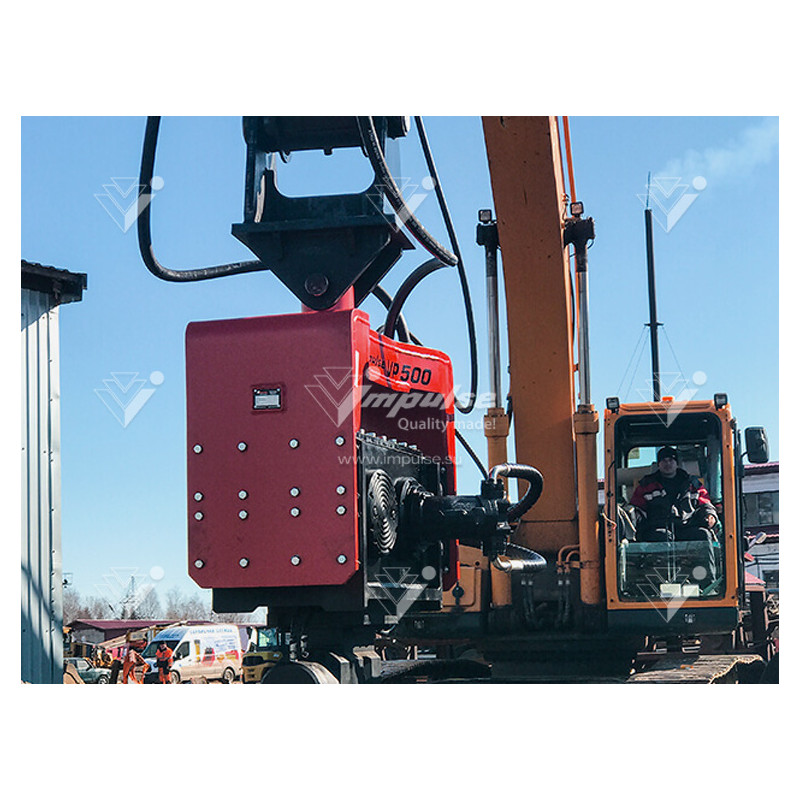

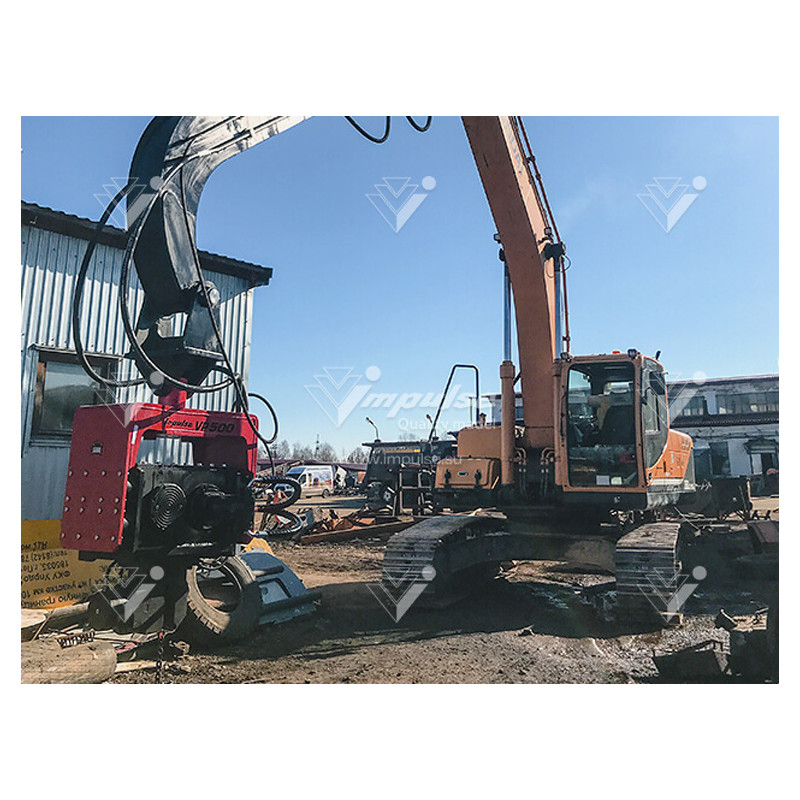

The Impulse VP500 hydraulic-driven vibratory hammer is designed to be mounted on a hydraulically equipped base machine (excavator, drilling rig, etc.) and is intended for driving and extracting various types of pile elements into and out of the ground:
- Steel sheet piles (Z-, U-shaped, flat, etc.);
- Tubular piles;
- Sheet pile panels;
- Steel pipes;
- Wooden piles;
- Plastic/composite sheet piles;
- Beams (I-beam, channel, etc.).
The maximum weight and length of the pile elements are determined by the soil conditions at the worksite.
When equipped with a removable tamping plate, the Impulse VP500 is suitable for compacting the surface layer of the soil to increase its bearing capacity.
The delivery set includes:
- Impulse VP500 hydraulic vibratory hammer
- Sheet pile clamp head
- Swivel adapter ("shackle")
- Set of hydraulic hoses for connecting to the base machine's hydraulic system
- Operation and maintenance manual
